ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

ZP15D Rotary Tablet Press Machine

15 Dies Tablet Press Machine

60KN Max Pressure Pill Press Machine

Contactez-nous

Demandez une citation

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Détails de produit

Modèle no.:

ZP15D

Tension:

380v

Ensembles décèdent:

Pression maximale:

60 kN

Diamètre de comprimé maximum:

22 mm

Profondeur de remplissage maximale:

15 mm

Épaisseur de comprimés maximaux:

6 mm

Capacité de production:

35000 pcs/h

Vitesse de la tourelle:

37 tours/min

Puissance du moteur:

2,2 kW

Vitesse du moteur:

960 t/mn

Taille globale:

615 x 890 x 1 415 mm

Poids:

700 kg

Matériel:

acier inoxydable

Type de lubrification:

Immergé dans l'huile

Conditions de paiement et d'expédition

Quantité de commande min

Prix

7500

Produits connexes

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Obtenez le meilleur prix

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Obtenez le meilleur prix

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Obtenez le meilleur prix

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Obtenez le meilleur prix

Contactez-nous

86-21-57664559

Contact maintenant

Description de produit

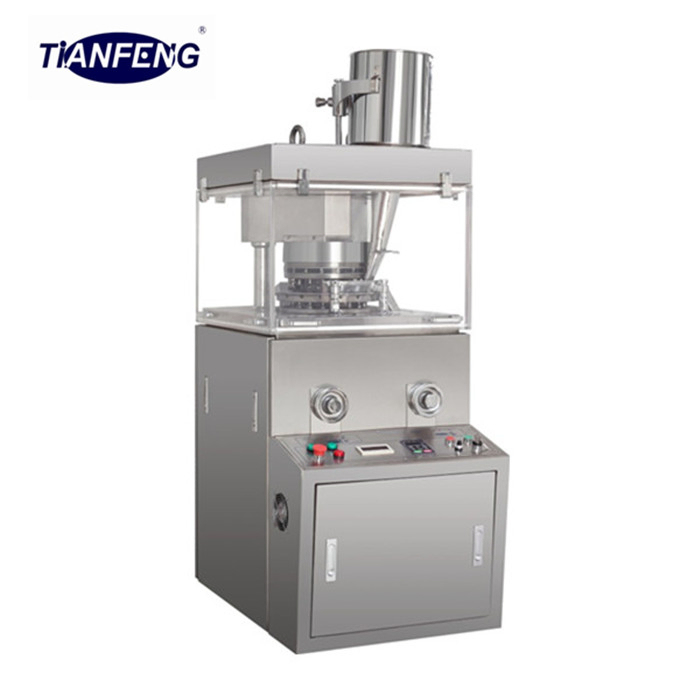

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press converts granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning and maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Specifications

Dies (sets)	15
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest tablet (mm)	6
Production capacity (pcs/h)	35,000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall dimensions (mm)	615 × 890 × 1,415
Weight (kg)	700
